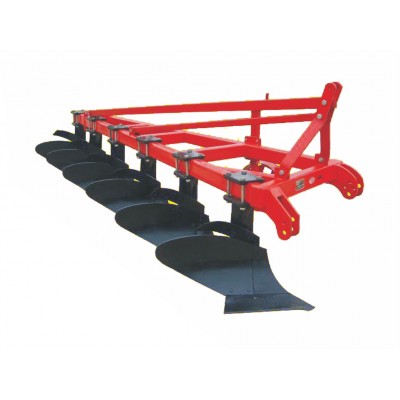

High Quality Sharp Plough for Wheel Tractor--Hunan Sunfield Agricultural Machinery Co., Ltd.

Basic Info

Model NO.: 18/20/20A/25/27
Application Field: Agriculture
Power Source: Tractor
Traction Type: Semi Hanging
Arbor Configuration: Horizontal Axis
Color: Green
Model: 18/20/20A/25/27
Transport Package: Wooden Case Packing
Origin: China

Type: Rotary Tiller
Farming Policy: Dry Cultivating Machinery
Operation: Arable Machinery, Movable Operation
Drive Type: Gear Drive
Certification: SGS
Small Size and Compact Structure: Working Depth From 140-200mm
Trademark: Sunfield
Specification: GB
HS Code: 84321000

Product Description

I. Main Features
The Moldboard plows are full mounted and suitable for ploughing on the cultivated the land with the soil resistance no more than 1.2kg/cm2.The plow is simple in structure and light in weight. Suitable working scope is wide, after cultivation, the land surface is leveling and the furrow is narrow and the soil is well crushed and turned over.

II.Technical parameter

Type	Furrow Width (mm)	Working Depth (mm)	Parameter of Bottom	2 Boars	3 Boars	4 Boars	5 Boars	6 Boars
18	180	140-160	Working width(mm)	360	540
18	180	140-160	Matched power(HP)	400	15-20
20, 20A	200	180-250	Working width(mm)	12-22	600	800	1000
20, 20A	200	180-250	Matched power(HP)		20-35	30-40	40-50
25	250	180-251	Working width(mm)		750	1000	1250
25	250	180-251	Matched power(HP)		35-40	50-60	60-70
27	270	160-200	Working width(mm)		810	1080	1350	1620
27	270	160-200	Matched power(HP)		28-30	50	60-65	75-80
