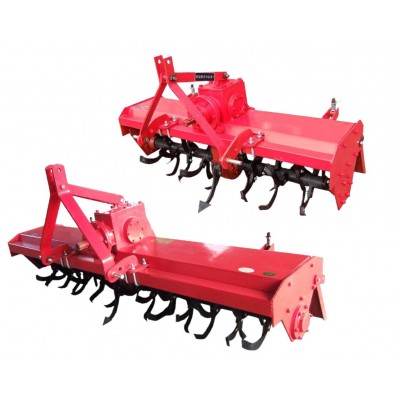

Three Point-Mounted Rotary Tiller--Hunan Sunfield Agricultural Machinery Co., Ltd.

Basic Info

Type: Rotary Tiller
Farming Policy: Paddy Field Machinery
Operation: Arable Machinery, Continuous Running Operation
Drive Type: Gear Drive
Certification: CCC
Linkage: Three Point-Mounted
Transport Package: Wodden Packing
HS Code: 84329000

Application Field: Agriculture, Livestock, Aquaculture
Power Source: Tractor
Traction Type: Traction
Arbor Configuration: Horizontal Axis
Color: Red
Trademark: changxuan
Origin: Changzhou

Product Description

Features
Rotary cultivator adopts intermediate gear transmission structure, matched with large and medium-sized tractor ranging from 50 to 150 HP. It can be used both in dry and water paddy field with reliable quality and good performance. After this series of rotary cultivation, the cultivated soil surface is very flat, covered tightly and shown advantages of high efficiency and low fuel consumption.

Technical Parameter

Model	1GQN-180	1GQN-200	1GQN-230	1GQN-250	1GQN-280	1GQN-300
Working Width(cm)	180	200	230	250	280	300
Working Depth(cm)	7-12,10-18 Dry land 7-12,Paddy field 10-18
Type of blades	IT245
Number of blades(pcs)	50	58	62	66	70	74
Weight(kg)	405	420	435	460	480	520
Rotary Speed(rpm)	540/720
Rotary Speed(rpm)	200
Working Speed(km/h)	2.0-5.0
Productivity(ha/h)	0.53-0.74	0.6-0.8	0.66-0.87	0.73-1.0	0.82-1.1	0.87-1.2
Linkage	Three point-mounted
Matched Power(HP)	36.7-40.4	40.4-55	53-59	58-81	73.5	88-110
