Wheel Tractor Implement One Way Side Disc Plow--Hunan Sunfield Agricultural Machinery Co., Ltd.

Basic Info

Model NO.: 1LYQ-(315-530)
Application Field: Agriculture
Power Source: Diesel
Traction Type: Semi Hanging
Arbor Configuration: Horizontal Axis
Color: Green
Transport Package: Wooden Case
Origin: China

Type: Disc Plough
Farming Policy: Dry Cultivating Machinery
Operation: Soil Preparation Machinery, Continuous Running Operation
Drive Type: Chain Drive
Certification: CCC
Trademark: Sunfield
Specification: GB
HS Code: 84321000

Product Description

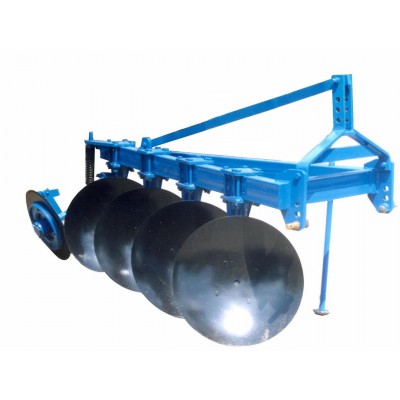

One way side disc plow
Main Features:
This series of disc plow products are mainly used on dry cultivated or fallow land,,especially suitable for high yield of green manure land for wheat and rice stubble fields. This series disc plow has features of small resistance for rotary ploughing, good effect and high work efficiency for crushed soil. Meanwhile it adopts three-point suspension articulated, simple operation, flexible steering and transportation to the field.

Technical Parameters:

Model	1LYQ-315	1LYQ-320		1LY-325	1LY-425	1LY-525	1LY-625		1LY-530
Max.tillage width (m)	0.45	0.6		0.75	1.0	1.25	1.50		1.5
Max.tillage depth (cm)	18	20		25					30
Qty. of Disc(pcs)	3				4	5	6		5
Dia. of Disc(mm)	450	510		660					710
Weight(kg)	160	180		430	520	600	700		620
Linkage	Three point-mounted I			Three point-mounted II
Matched Power(HP)	12-30		25-35	50-65	65-85	80-100	100-120	90-120
